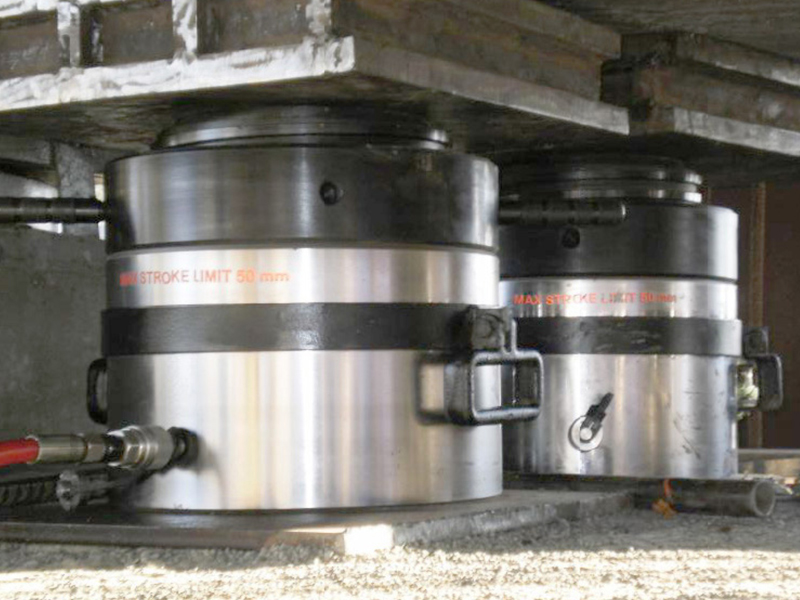

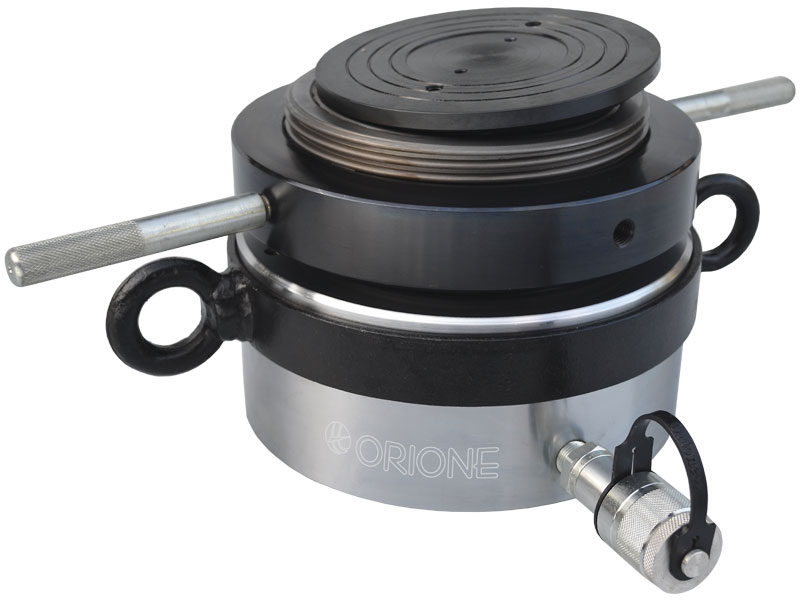

Pancake Jacks - Threaded Ram With Safety Lock Nut & Tilt Saddle

Request A Quote

Application :

Used in low clearance confined area.

Ideally suited for precision lifting, alignment of machinery, heavy structures and girders. requiring sustained load holding.

Note : Don't over stroke, no mechanical Ram stopper



Capacity
(ton)
Capacity
(kN)
Stroke
(mm)
Model Effective area
(cm2)
Oil cap.
(cc)
Closed height
(mm)
Wt. (Approx.)
(kg)
50 550 50 OLTVL 50-50 78.5 393 125 14.2
100 1077 50 OLTVL 100-50 153.9 770 140 25.4
150 1589 45 OLTVL 150-45 227 1022 150 44
200 2199 45 OLTVL 200-45 314.2 1414 155 57
250 2661 45 OLTVL 250-45 380.1 1710 160 77
300 3167 45 OLTVL 300-45 452.4 2036 170 98
400 4008 45 OLTVL 400-45 572.6 2577 180 128
500 4948 45 OLTVL 500-45 706.9 3181 195 186
800 7939 45 OLTVL 800-45 1134.1 5104 245 369
1000 9930 45 OLTVL 1000-45 1418.6 6384 260 475
1200 12405 45 OLTVL 1200-45 1772.1 7974 280 590
