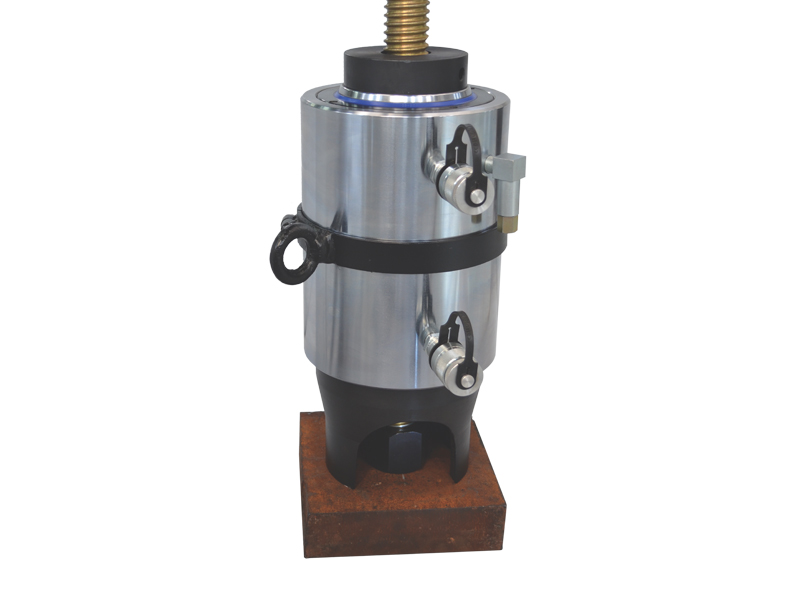

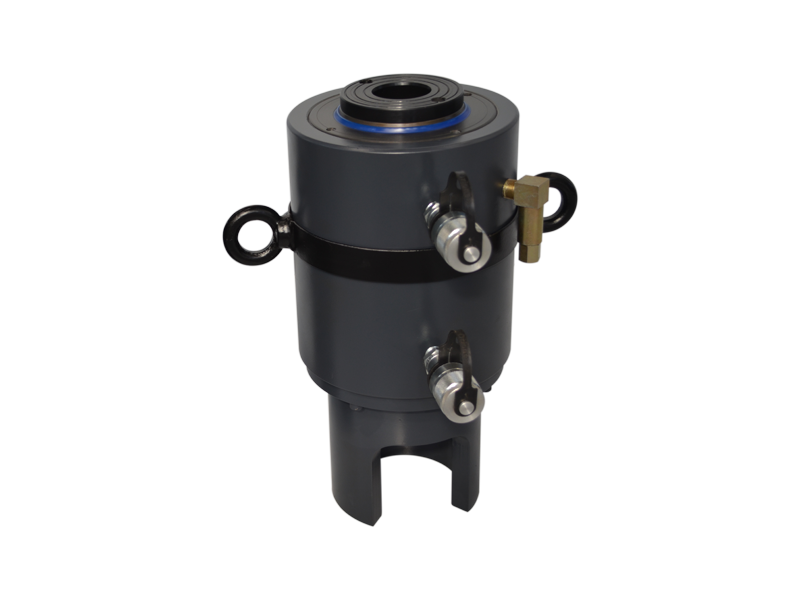

Bar Stressing Jacks
Capacity : 80 - 400 ton | Stroke : 100 mm
Features / Application :

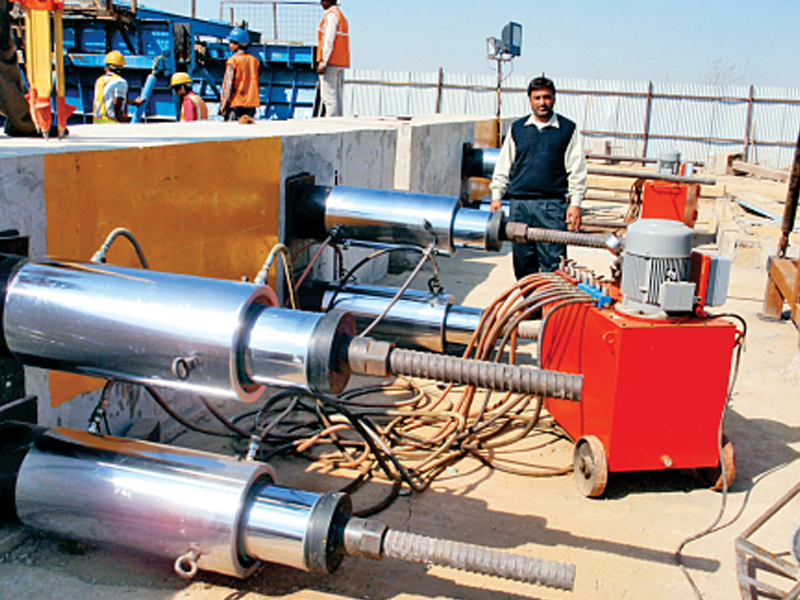

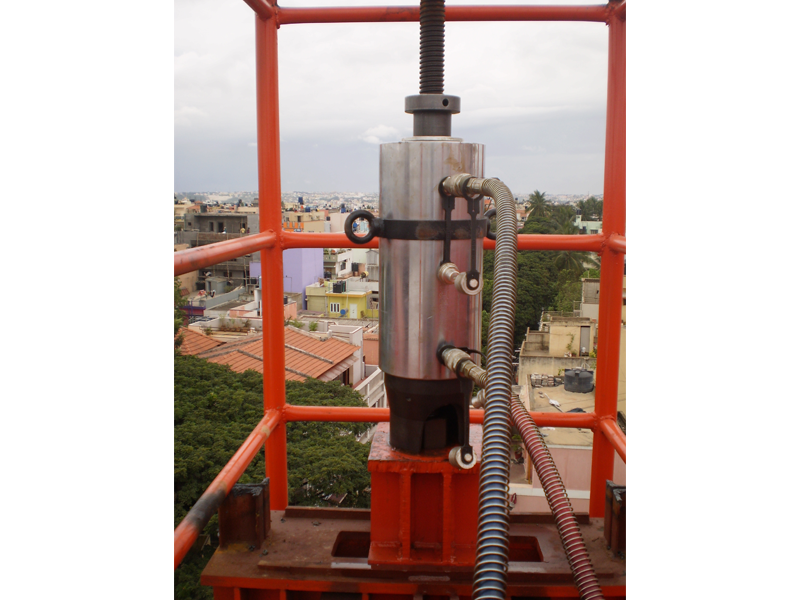

Used with high tensile threaded bars for pulling and locking
Short strokes for lifting and aligning segments as well as for temporary stressing
Long strokes for pulling and locking multiple tendons of concrete structure
The threaded bars are stressed as structural members too
Note : We have designed, manufactured and supplied a wide range of customized Bar Jacks in Steel as well as Alloy Alluminium – 60t, 150t, 160t, 200t & 300t
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
C’hole dia. (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|---|
| 80 | 846 | 100 | OBS 80-100 | 130.2 | 1302 | 427 | 80 | 70 |
| 120 | 1285 | 100 | OBS 120-100 | 183.6 | 1840 | 530 | 81 | 97 |
| 180 | 1853 | 100 | OBS 180-100 | 285 | 2850 | 486 | 91 | 151 |
| 400 | 4082 | 100 | OBS 400-100 | 742.2 | 7422 | 690 | 100 | 433 |
