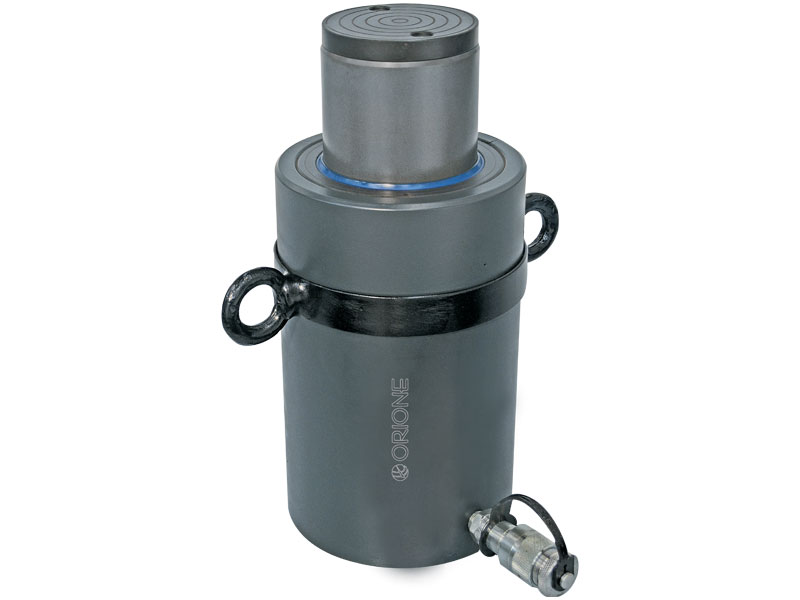

Aluminium General Purpose Jacks - Plain Ram, Single Acting, Spring Return
Capacity 30 - 200 ton / Stroke 150 mm / Max. Working Pressure 700 bar
Request A QuoteApplication :
50% lighter than a steel jack with 5000 duty cycles.

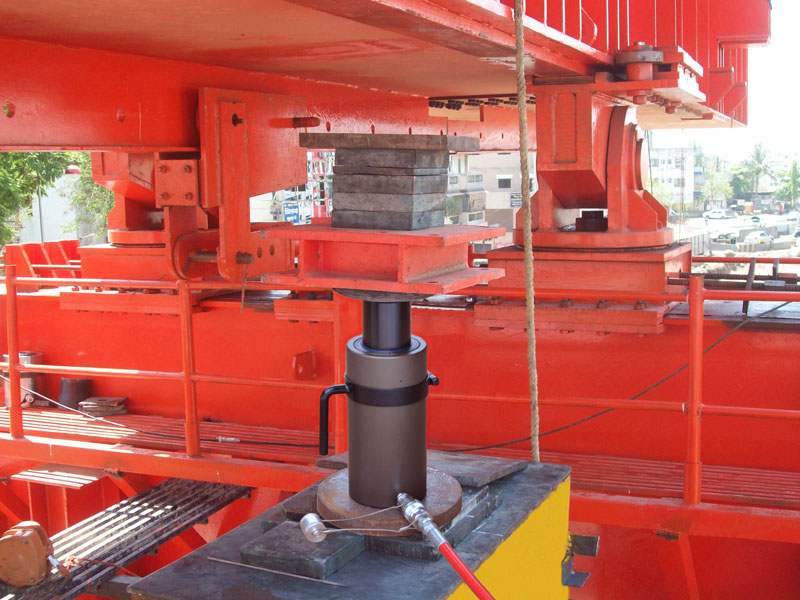

Used in horizontal and vertical directions
Suits general lifting applications
Composite guide rings at piston and gland nut facilitate to use in all directions when centrally loaded.
All sub assemblies anodized.
Base mounting holes are optional.
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 30 | 309 | 150 | OASP 30-150 | 44.2 | 663 | 290 | 6 |
| 50 | 550 | 150 | OASP 50-150 | 78.5 | 1178 | 300 | 8 |
| 100 | 1077 | 150 | OASP 100-150 | 153.9 | 2309 | 320 | 23 |
| 150 | 1589 | 150 | OASP 150-150 | 227 | 3405 | 345 | 34 |
| 200 | 2199 | 150 | OASP 200-150 | 314.2 | 4713 | 370 | 50 |
