Aluminium General Purpose Jacks - Threaded Ram With Safety Lock Nut, Single Acting, Spring Return
Capacity 50 - 1000 ton / Stroke 150 - 250 mm / Max. Working Pressure 700 bar
Request A QuoteApplication :
50% lighter than a steel jack with 5000 duty cycles.
Used in horizontal and vertical directions
Composite guide rings at piston and gland nut facilitate to use in all directions when centrally loaded.
All sub assemblies anodized.
Base mounting holes are optional.
Ideally suited for application requiring sustained load holding Suits.

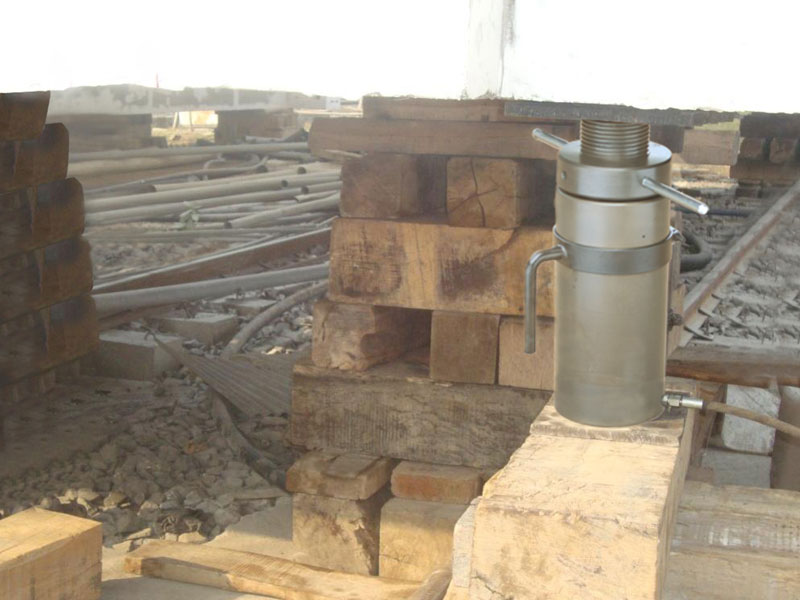

General lifting applications.
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 30 | 309 | 150 | OAST 30-150 | 44.2 | 663 | 305 | 6 |
| 50 | 550 | 150 | OAST 50-150 | 78.5 | 1178 | 325 | 11 |
| 100 | 1077 | 150 | OAST 100-150 | 153.9 | 2309 | 380 | 25 |
| 150 | 1589 | 150 | OAST 150-150 | 227 | 3405 | 405 | 40 |
| 200 | 2199 | 150 | OAST 200-150 | 314.2 | 4713 | 440 | 60 |
