Hydraulic Power Packs For Jacks, Customized Hydraulic Power Packs

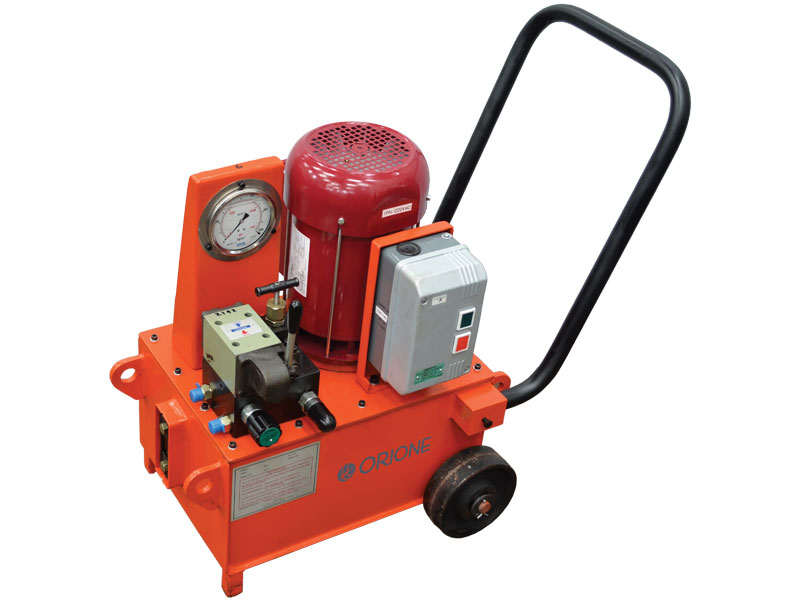

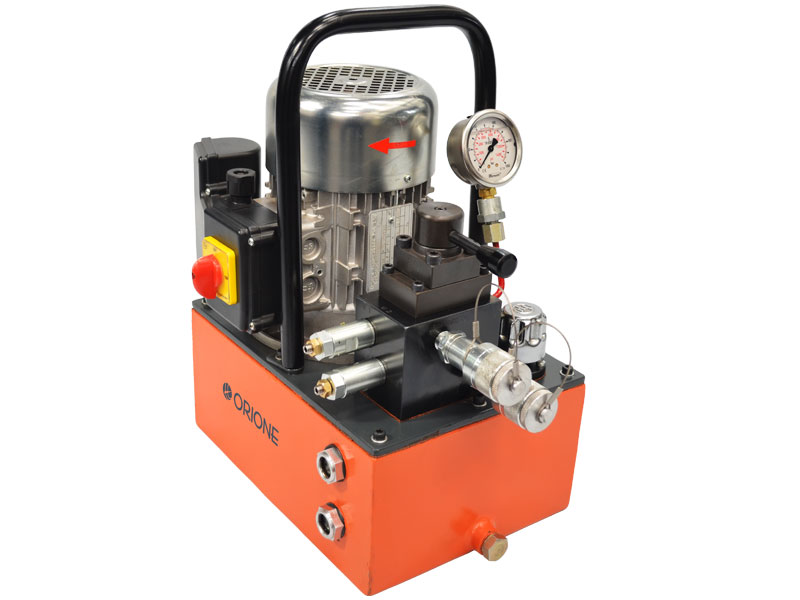

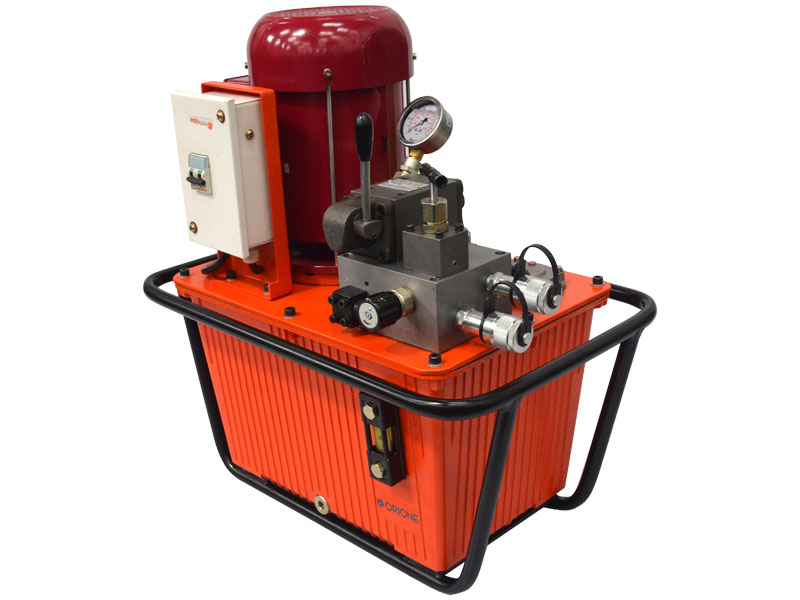

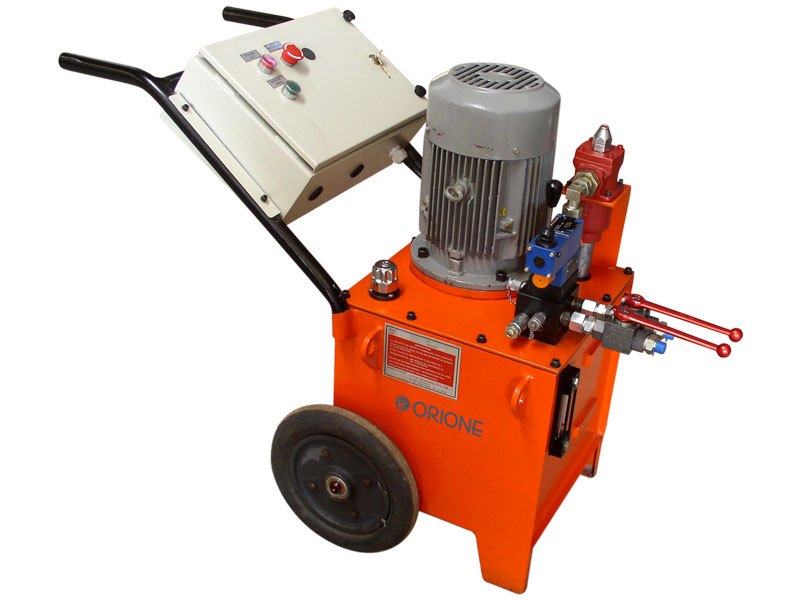

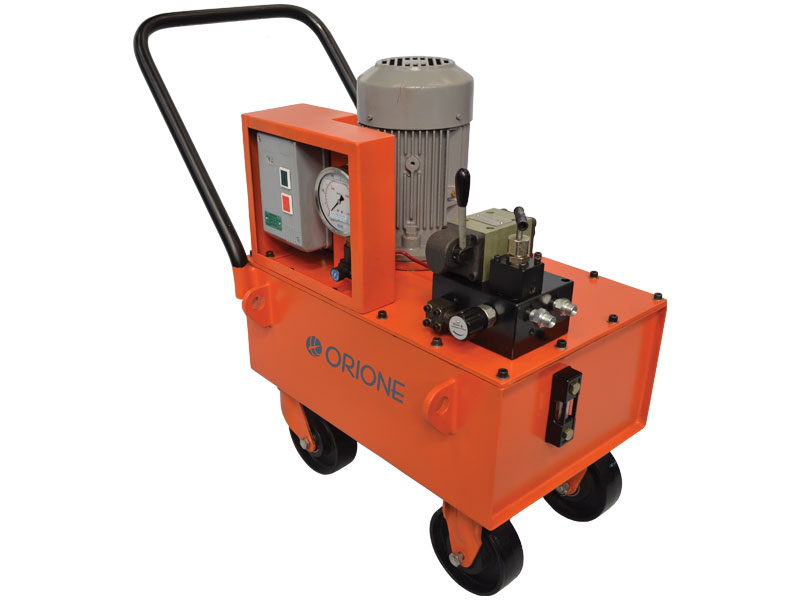

Hydraulic Power Packs

Max. Working Pressure 700 bar

Request A Quote

All Electricals, Hydraulic elements, Tank accessories & Hydraulic fittings from reputed manufacturers.

Are designed Robust with good aesthetics and are easy to maintain.

Motor HP Three phase	Model	Flow Up to 150 bar (l / min.)	Flow above 150 bar (l / min.)	Filling Capacity (ltrs.)	Usable Oil (ltrs.)
2	OPU-2-20-HS	-	1	20	12
2	OPU-2-40-HD	4.8	1	40	25
2	OPU-2-40-PD	4.8	1	40	25
3	OPU-3-40-HS	-	1.5	40	25
3	OPU-3-40-HD	7.3	1.5	40	25
3	OPU-3-40-PD	7.3	1.5	40	25
5	OPU-5-50-HS	-	2.5	50	35
5	OPU-5-50-HD	12.3	2.5	50	35
5	OPU-5-50-PD	12.3	2.5	50	35
7.5	OPU-7.5-80-HS	-	3.7	80	55
7.5	OPU-7.5-80-HD	17.3	3.7	80	55
7.5	OPU-7.5-80-PD	17.3	3.7	80	55

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
50	535	150	ODTS 50-150	76.4	1146	340	38.5
50	535	300	ODTS 50-300	76.4	2293	490	45.5
100	1126	150	ODTS 100-150	160.8	2412	365	79.5
100	1126	300	ODTS 100-300	160.8	4825	515	105
150	1644	150	ODTS 150-150	234.8	3524	400	113.5
150	1644	300	ODTS 150-300	234.8	7045	550	148
200	2227	150	ODTS 200-150	318.1	4773	420	167.5
200	2227	300	ODTS 200-300	318.1	9543	570	204.5
250	2639	150	ODTS 250-150	377	5656	425	210.5
250	2639	300	ODTS 250-300	377	11310	575	253.5
300	3223	150	ODTS 300-150	460.4	6907	440	265.5
300	3223	300	ODTS 300-300	460.4	13814	590	320.5
400	4502	150	ODTS 400-150	643.2	9650	470	389.5
400	4502	300	ODTS 400-300	643.2	19298	620	464
500	5438	150	ODTS 500-150	776.8	11651	485	491
500	5438	300	ODTS 500-300	776.8	23303	635	592
600	6460	150	ODTS 600-150	922.8	13842	510	625
600	6460	300	ODTS 600-300	922.8	27685	660	703
800	8576	150	ODTS 800-150	1225.2	18380	550	975
800	8576	300	ODTS 800-300	1225.2	36756	700	1048
1000	10842	150	ODTS 1000-150	1548.8	23235	585	1160
1000	10842	300	ODTS 1000-300	1548.8	46464	735	1354
